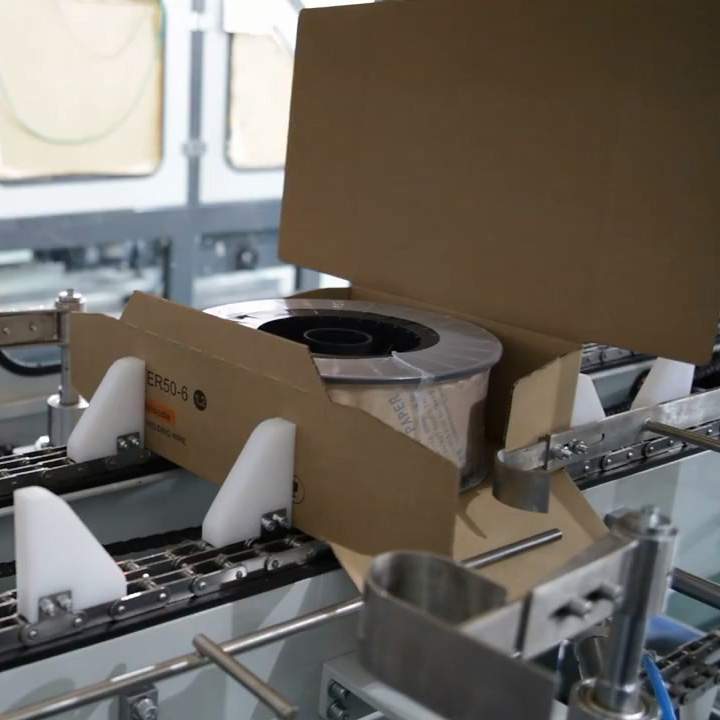

Wraparound packer
The machine adopts an imported PLC programmable controller and man-machine interface display control system to integrate machine, electricity, and gas, with manual/automatic optional functions.
The whole equipment has fine workmanship, simple structure, and all internal materials are made of high-quality materials, with a beautiful appearance.
Adopt a separate motor to drive the cam to do paper suction, ensure the paper supply is stable, and avoid leakage or jamming occurring.
The equipment is equipped with a cardboard detection device to stop the box suction when there is no cardboard.
If there is material lack or abnormal failure when running, the equipment will automatically alarm and stop.
Adopt top-brand servo motors to ensure the packing work is stable and reliable.
|
Wraparound packer |
|
|
Model |
KB-ZX02 |
|
Machine size |
L4500*W1600*H2500mm |
|
Packing speed |
≥8 boxes/min |
|
Machine weight |
1800kg |
|
Power supply |
380V, around 12kw |
|
Air supply |
0.6-0.8Mpa |
|
Hot melt adhesive |
Nordson |
